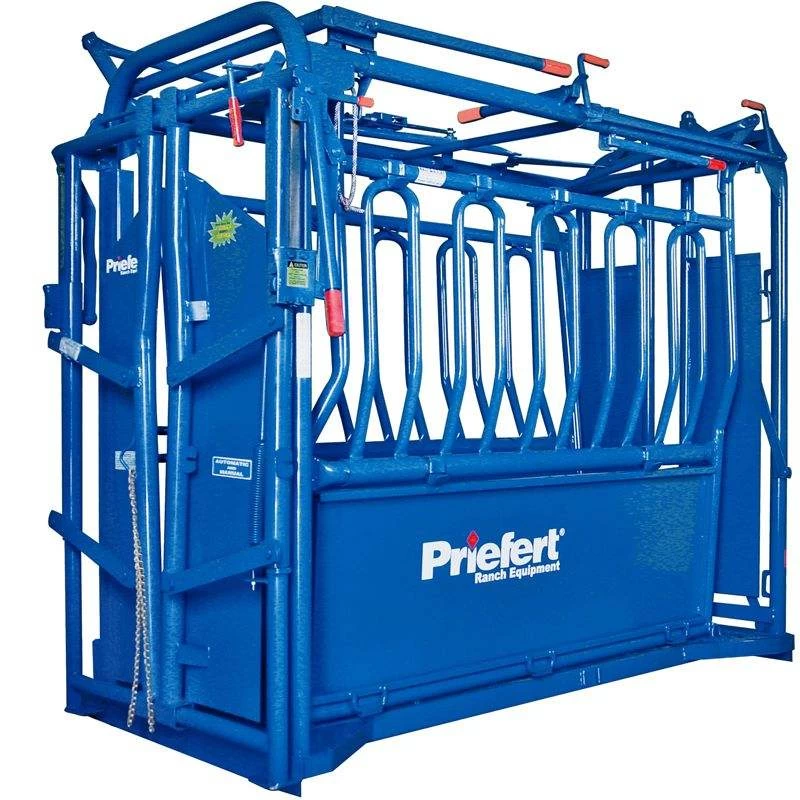

Priefert Model S04 Squeeze Chute

• Lubricate locks and all moving parts before each use with a light oil (i.e. WD-40). DO NOT use heavy oil.
• Overall Height: 80”
• Overall Length: 94.5”
• Overall Width (including handles): 53”
• Weight: 1210 lbs (All weights approximate)
• Inside Height: 62.5” (Floor to inside top of the tailgate frame)
• Inside Length: 87”
• Inside Width: 24” at the Belly Pipe, 30” at the bend of the contoured side panels
• Comes standard with the HG91 Manual/Automatic Headgate
• Includes Head Chain (HC)
• Dip Painted Priefert Blue
• Designed to be user friendly, all levers and handles are located so that a single individual can operate the headgate, tailgate, squeeze, and side exit from one spot with minimal effort.
• S04

Priefert’s number one selling squeeze chute of all time, the S04 heavy duty Squeeze Chute helps take the “work” out of working cattle. Designed to be “Easy on the Cow, Easy on the Cowboy,” this chute offers a number of features that make it one of the safest chutes on the market for animals and operators. With our patented “Infinite Locking System” (which is Guaranteed for Life), cattle are always controlled by the lock, rather than by the strength of the operator. Never before has a manual squeeze chute been so easy to operate. A single individual can control the tailgate, headgate, squeeze and side exit from one spot with minimal effort. This chute is contoured to fit cattle and the headgate self-adjusts to the correct locking width to fit any size animal. This, coupled with the “floating floor” adjustment and the split tailgate, makes this chute ideal for working cattle of all sizes. With multiple access points, the S04 gives you total control of your herd for all your cattle working needs.
